정확한 유량 조절 및 에너지 효율적인 작동을 위한 맞춤형 밸런싱 밸브 솔루션

What is a balancing valve? What are the main categories and core functions?

1. A balancing valve is installed on piping branches to regulate water circulation flow, balance pressure differentials across the network, and eliminate hydraulic imbalance.

2. They fall into three main categories: manual calibrated flow balancing valves, self-acting automatic flow balancing valves, and electronically controlled programmable flow valves, catering to various project budgets and smart-system requirements.

3. By stabilizing flow rates across branches, they prevent excessive flow in near-end pipes and insufficient supply to far-end pipes, thereby balancing heating or cooling performance across zones and reducing system energy consumption.

Which types of balancing valves are suitable for specific projects?

1. Manual calibrated balancing valves: Ideal for residential underfloor heating and HVAC projects in small-to-medium-sized shops; flow is manually adjusted via a scale, offering moderate procurement costs.

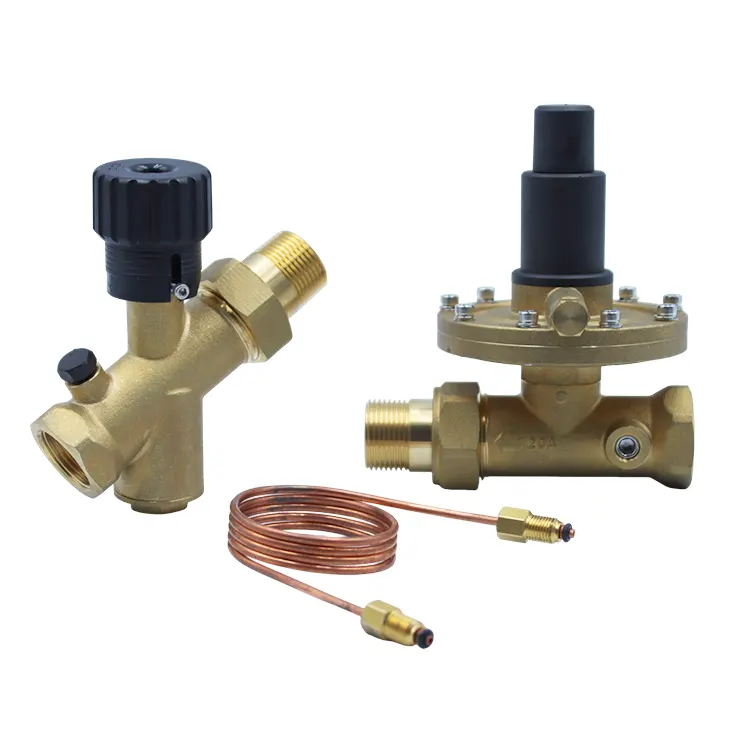

2. Self-acting automatic flow balancing valves: Suitable for central air-conditioning systems in office buildings and shopping malls; they require no external power and automatically adjust to pressure differential changes to maintain a constant flow rate.

3. Electronically controlled programmable flow valves: Designed for large commercial complexes and building automation projects; compatible with building control signals to enable remote, intelligent flow regulation.

What are the advantages of our balancing valves?

1. Constructed from forged HPb59 brass in a single-piece molding process, they withstand thermal shock from alternating hot and cold media, effectively resist corrosion, and inhibit dezincification.

2. The valve body features a nickel-plated finish to minimize limescale buildup, ensuring a clear internal flow path during long-term operation and preventing valve core jamming or malfunction.

3. Optimized valve body wall thickness ensures stable pressure resistance, enabling the valve to withstand pressure fluctuations caused by system start-stop cycles and reducing the risk of leakage.

How are regulation precision and long-term sealing performance ensured?

1. Features a precision internal valve core structure with clear, controllable regulation travel; accurately limits maximum branch flow to simplify commissioning.

2. Equipped with high-temperature resistant, double-layer sealing gaskets that withstand long-term thermal cycling without aging or deforming, effectively preventing valve body leakage.

3. Flow channels are hydrodynamically optimized to minimize flow noise and prevent turbulence or vibration caused by throttling, which could otherwise interfere with system operation.

What benefits does this offer HVAC contractors during installation and commissioning?

1. Standardized thread specifications allow for direct connection to manifolds, copper piping, and PEX tubing, reducing the need for adapter fittings.

2. The compact valve body design fits easily into underfloor heating cabinets and narrow ceiling pipe shafts, saving installation space.

3. Clear flow rate markings enable on-site technicians to quickly perform hydronic balancing, shortening the construction timeline.

What long-term operational value does installing balancing valves bring to HVAC systems?

1. Balances temperatures across the entire home or building, eliminating complaints regarding localized cold spots or insufficient heating.

2. Optimizes pump load and reduces energy waste, lowering long-term heating and cooling operating costs.

3. Stabilizes pipeline pressure and mitigates flow surges, extending the service life of pipes, valves, and heat source equipment.

Why choose Huitong?

1. Extensive in-stock inventory covering a wide range of specifications and control types, facilitating unified selection and procurement for HVAC projects of all sizes.

2. Supports customization of valve nameplates and packaging (OEM/private labeling) to meet the bundling requirements of HVAC brands.

3. Provides product specification manuals and factory pressure test reports to satisfy project inspection and export customs clearance requirements.

4. Brass raw materials undergo chemical composition analysis and salt spray aging tests upon receipt, ensuring quality at the source.

5. Continuous sampling during production verifies valve core fit precision and the accuracy of flow parameters against scale markings, ensuring consistent manufacturing standards.

6. Finished products undergo hydrostatic seal testing and spot checks for flow rate calibration; batch records are fully archived, enabling end-to-end quality traceability.
